Rotary Light Switch -EX1-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Turn the Light Switch -E1- to "0".

-- Push the Light Switch -E1- handle in -arrow 1- and turn it a little to the right in direction of -arrow 2-.

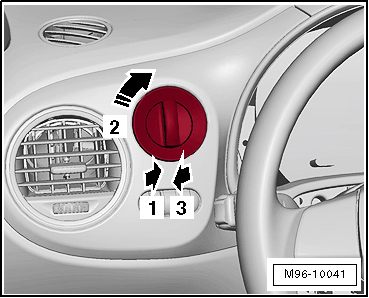

Fig 1: Identifying Removal Method For Light Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the rotary handle in this position and remove the Light Switch -E1- from the instrument panel by the handle -arrow 3-.

-- Release and disconnect the connector.
