Rotary Light Switch -EX1-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal while noting the following:

-- Connect the connector.

-- Hold Light Switch -E1- firmly and press in rotary handle of Light Switch -E1- in direction of -arrow 1- and turn slightly toward right in direction of -arrow 2-.

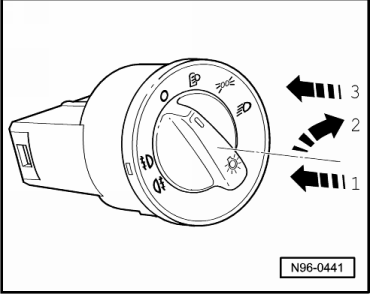

Fig 1: Identifying Installation Method For Light Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the rotary handle in this position and insert the Light Switch -E1- into the instrument panel in direction of -arrow 3-.

-- Turn the rotary switch to the "0" position, release it and engage the Light Switch -E1-.
