Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Beginning on the front side, disconnect the grip panel -1- from the retaining tabs -arrows- using the : 3409  .

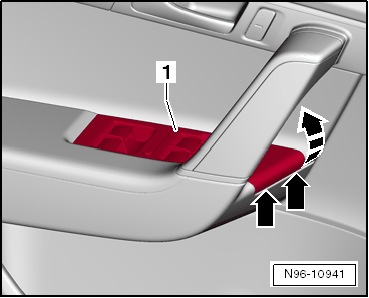

Fig 1: Identifying Handle Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then disconnect the rest of the retaining tabs from the grip panel -1- all around using the : 3409  .

-- Carefully pivot the grip panel upward in the direction of the -arrow- out of the door trim.

-- Disconnect the connector -1 and 2- and remove the handle trim.

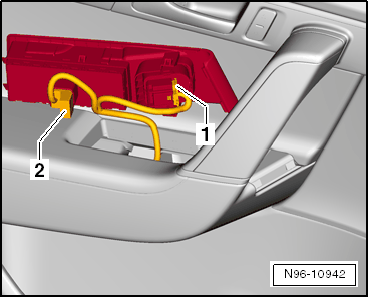

Fig 2: Identifying Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the retaining tabs -arrows- and remove the Power Window Control Head In Driver Door -E512- -1- from the grip panel.

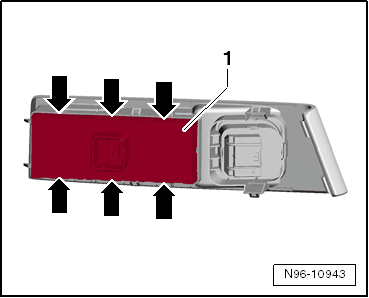

Fig 3: Identifying Tabs And Power Window Control Head in Driver Door

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
