Instrument Panel and Switch Illumination Dimmer Switch -E20-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the left driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connectors.

-- Open the tabs -arrows- and remove the Instrument Panel and Switch Illumination Dimmer Switch -E20- -1-.

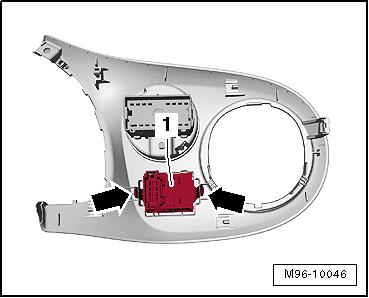

Fig 1: Identifying Retaining Tabs And Headlamp Range Control Adjuster
GWWM96-10046Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
