Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the climate control trim -2- using the : 3409 .

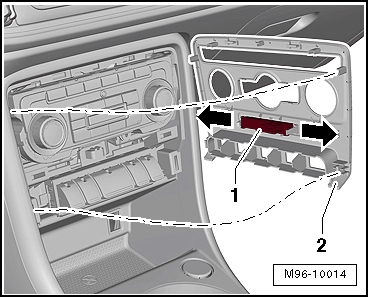

Fig 1: Identifying Locking Mechanisms And Trim Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors.

-- Press the locking mechanisms away from each other in direction of -arrow- and remove the Front Passenger Airbag -Disabled- Indicator Lamp -K145- -1- from the trim frame -2-.
