Driver Interior Locking Button -E308-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connectors.

-- Open the tabs -arrows- and remove the Driver Interior Locking Button -E308- -1- from the door trim panel -2-.

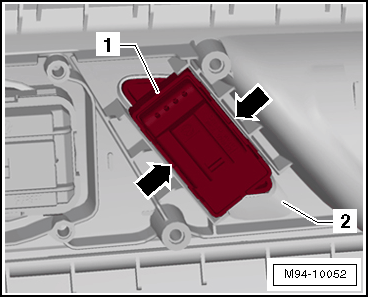

Fig 1: Identifying Interior Locking Button
GWWM94-10052Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
