Component Location Overview - Controls In Front Doors

WARNING: This page is about a different variant/trim than selected.

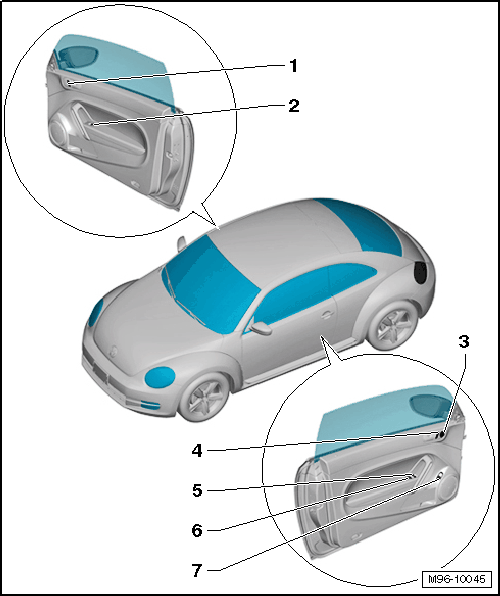

Fig 1: Identifying Front Door Controls Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Passenger Interior Locking Button -E309-
- Removing and Installing. Refer to Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
Front Passenger Door Window Regulator Switch -E107-
- Removing and Installing. Refer to Front Passenger Door Window Regulator Switch -E107-, REMOVING AND INSTALLING .
Mirror Adjusting Switch -E43-
- Removing and Installing. Refer to Exterior Rearview Mirror Adjusting Unit -EX11-, REMOVING AND INSTALLING .
Driver Interior Locking Button -E308-
- Removing and Installing. Refer to Driver Interior Locking Button -E308-, REMOVING AND INSTALLING .
Left Front Window Regulator Switch -E40-
- Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
Right Front Power Window Switch in Driver Door -E81-
- Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
