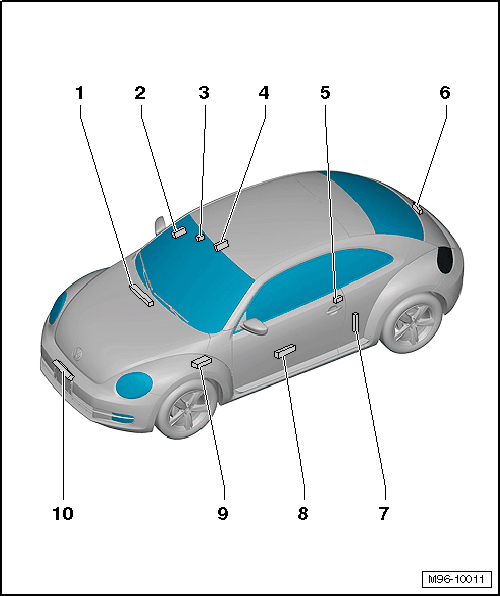

Overview - Interior Monitoring
WARNING: This page is about a different variant/trim than selected.
NOTE:
Components of Anti-Theft Alarm System/interior monitoring are dependent on vehicle equipment.
- Alarm Horn -H12-
- Nut tightening specification: 10 Nm
- In the center of the plenum chamber
- Removing and Installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
- Front Passenger Door Control Module -J387-
- In the front passenger door
- Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Front Passenger Door Contact Switch -F3-
- Inside the Front Passenger Central Locking Lock Unit -F221-
- Refer to OVERVIEW - DOOR COMPONENTS .
- Interior Monitoring Sensor -G273-
- In the Front Interior Lamp -W1-
- Removing and Installing. Refer to Interior Monitoring Sensor -G273-, REMOVING AND INSTALLING .
- Driver Door Contact Switch -F2-
- Inside the Driver Central Locking Lock Unit -F220-
- Refer to OVERVIEW - DOOR COMPONENTS .
- Rear Lid Lock Unit -F256-
- Refer to OVERVIEW - HOOD .
- Interior Monitoring Deactivation Switch -E267-
- Removing and Installing. Refer to Interior Monitoring Deactivation Switch -E267-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- In the driver door
- Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Vehicle Electrical System Control Module -J519-
- Inside the footwell on the driver side under the instrument panel
- Includes the Central Locking and Anti-Theft Alarm System Antenna -R47-
- Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
- Inside the latch
- Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
