Alarm Horn -H12-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Deactivate the anti-theft alarm system. Refer to ANTI-THEFT ALARM SYSTEM, DEACTIVATING AND ACTIVATING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2-.

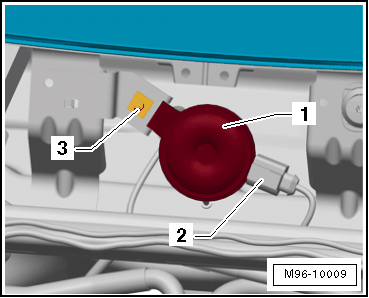

Fig 1: Identifying Alarm System Horn

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -3- and remove the Alarm Horn -H12- -1- from the plenum chamber.
