Windshield Wiper Motor, Replacing: Removing

-- Remove the wiper frame together with the linkage. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .

-- Pry the operating rod -1- on the ball joint from the motor crank -arrow- using the : 80-200  .

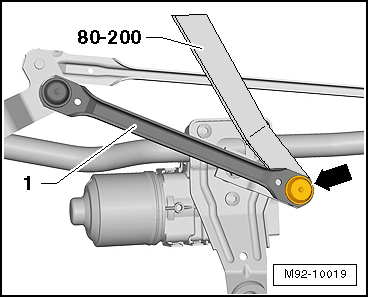

Fig 1: Identifying Removing Windshield Wiper Motor Linkage With Pry Lever 80--200

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -1-.

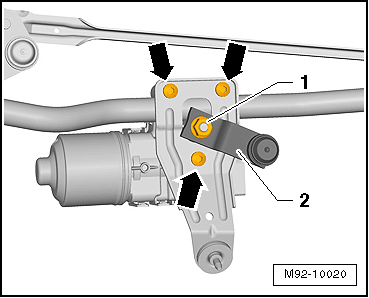

Fig 2: Identifying Wiper Motor Crank, Bolts, And Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the motor crank -2- from the windshield wiper motor shaft.

-- Remove the bolts -arrows-.

-- Remove the Windshield Wiper Motor -V- from the windshield wiper frame.
