Windshield Wiper Motor, Replacing: Installing

-- Connect the connector to the Windshield Wiper Motor -V-.

-- Turn on the ignition.

-- Activate "one-tap wiping" and let the Windshield Wiper Motor -V- run into its end position.

-- Turn off the ignition.

-- Release and disconnect the connector.

-- Install the Windshield Wiper Motor -V- on the windshield wiper frame.

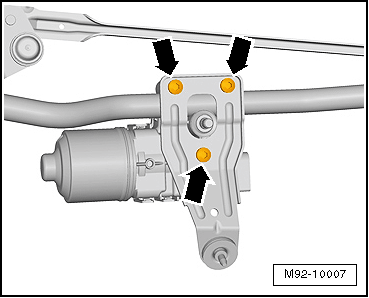

Fig 1: Identifying Wiper Frame Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -arrows-.

-- Mount the motor crank -4- onto the windshield wiper motor shaft -2- so that the three points -1 to 3- are in a line.

Fig 2: Identifying Motor Crank -4-, Wiper Motor Shaft -2- And Alignment Of Points -1 To 3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the nut -2-.

-- Connect the operating rod -1- on the motor crank on the ball joint -arrow-.

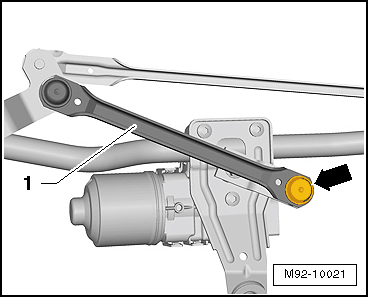

Fig 3: Installing Wiper Motor Linkage

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the windshield wiper frame. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
