Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING (CONVERTIBLE) .

-- Release and disconnect the connector -1-.

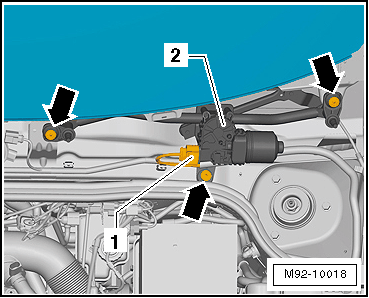

Fig 1: Identifying Wiper Motor Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and nut -arrows-.

-- Pivot the wiper frame -2- upward out of the vehicle.
