Windshield Wiper Arms, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Risk of damaging the wiper arm shaft.

The wiper arm shaft can get damaged when removing the windshield wiper arms without using the :T10369/1 .

If the Windshield Wiper Motor -V- is to be run during the work procedure, the hood must be closed, otherwise the voltage supply of the Windshield Wiper Motor -V- will be interrupted.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Pry out the caps -arrows- using a screwdriver.

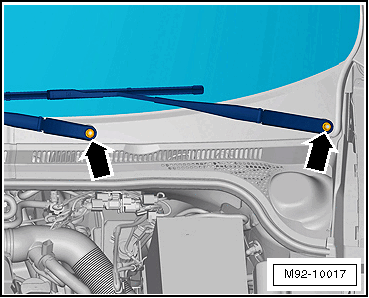

Fig 1: Identifying Wiper Arm Caps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the nuts -arrows- several turns.

-- Position the :T10369/1 on the windshield wiper arm -1- as shown.

Fig 2: Identifying Windshield Wiper Arm And Puller T10369/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the thrust piece -2- on the wiper arm shaft.

-- Rotate the bolt -3- clockwise until the wiper arm -1- is removed from the wiper arm shaft.

-- Remove the nut completely and remove the windshield wiper arm -1-.
