Rain/Light Recognition Sensor, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR .

-- Remove the wire cover over the Rain/Light Recognition Sensor -G397-.

-- Disconnect the connector -A- from the Rain/Light Recognition Sensor -G397- -1-.

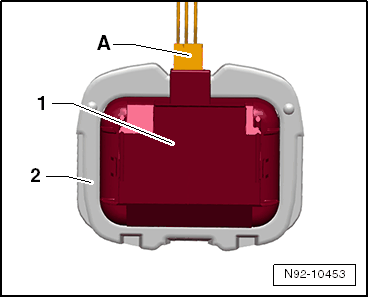

Fig 1: Identifying Connector -A- Harness Cover And Rain/Light Recognition Sensor -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Not every Rain/Light Recognition Sensor -G397- has the opening -3-. If this opening is not there, pry it out at another suitable location.

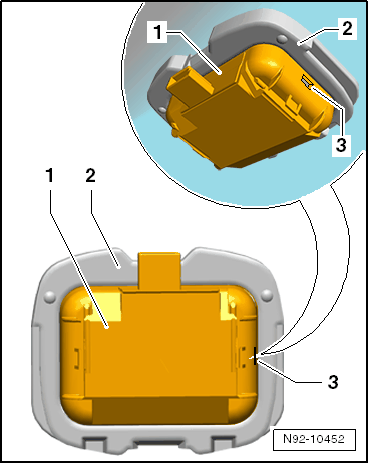

Fig 2: Identifying Rain/Light Recognition Sensor -1- Installed And Pressed Firmly Into Plate In Windshield -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the Rain/Light Recognition Sensor -G397- -1- out of the retaining plate -2- at the opening -3- using a suitable flat-head screwdriver.

While removing, the complete Rain/Light Recognition Sensor -G397- and not just the upper shell of the Rain/Light Recognition Sensor -G397- must be pried off.

CAUTION:

Lay the removed Rain/Light Recognition Sensor -G397- until it is reinstalled so that the connecting pad is not contaminated with dust or other deposits.
