Overview - Windshield Wiper System

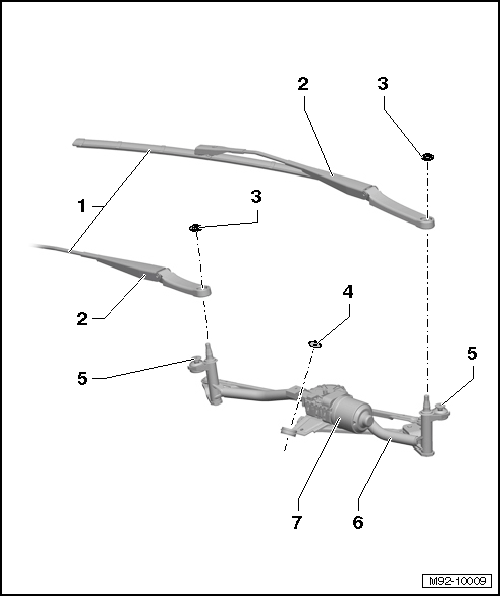

Fig 1: Exploded View Of Windshield Wiper System Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Joint-Free Windshield Wiper
   • Removing and Installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
2. Wiper Arms
   • Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
   • Park Position, Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
   • Service position. Refer to WINDSHIELD WIPER, BRINGING INTO SERVICE POSITION .
3. Nut
   • 20 Nm
   • Quantity: 2
4. Nut
   • 5 Nm
5. Bolt
   • 8 Nm
   • Quantity: 2
6. Wiper Frame with Linkage
   • Removing and Installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
7. Windshield Wiper Motor -V-
   • With the Wiper Motor Control Module -J400-
   • Removing and Installing. Refer to WINDSHIELD WIPER MOTOR, REPLACING .

No Illustration

• Windshield Wiper Motor -V- bolts to the wiper frame with linkage: 8 Nm
• Windshield wiper motor crank to windshield wiper motor shaft: 18 Nm
