Windshield Washer Pump, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

-- Place a Drip Tray under the washer fluid reservoir.

-- Release and disconnect the connector -3- from the Windshield Washer Pump -V5-.

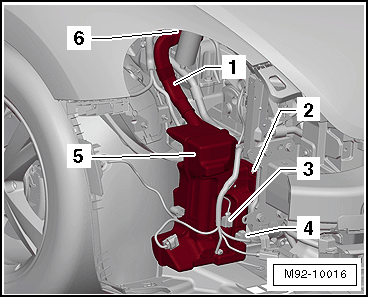

Fig 1: Identifying Washer Fluid Reservoir

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the washer fluid hose from the Windshield Washer Pump -V5-.

-- Remove the Windshield Washer Pump -V5- -2- upward from the washer fluid reservoir -1-.

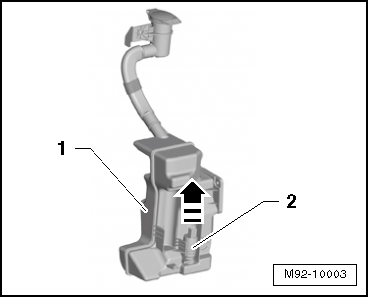

Fig 2: Identifying Removing Washer Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
