Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

-- Place a Drip Tray under the washer fluid reservoir.

-- Release and disconnect the Windshield Washer Fluid Level Sensor -G33- connector -2-.

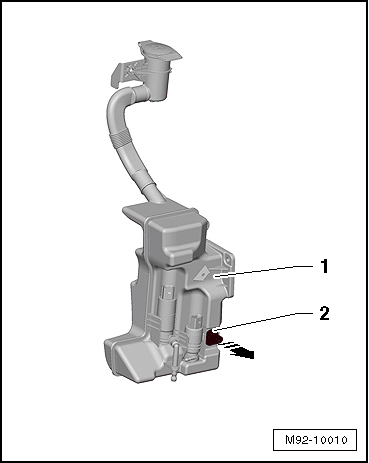

Fig 1: Identifying Windshield Washer Fluid Reservoir And Windshield Washer Fluid Level Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Windshield Washer Fluid Level Sensor -G33- -2- out of the rubber seal on the washer fluid reservoir -1-.
