Washer Fluid Reservoir, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

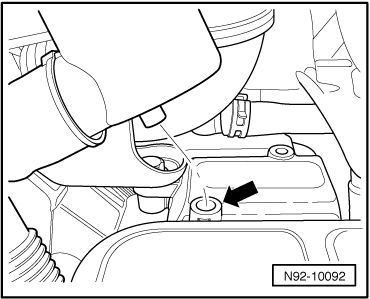

-- The locating tab on the bottom of the filler neck must be inserted into the hole -arrow-.

Fig 1: Casting Mark On Under Side Of Filler Tube And Engine Mounting Hole

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The connecting pipe -1- and filler neck -2- are joined so that the guides -arrows- interlock.

Fig 2: Connecting Tube And Filler Tube Joined So That Guides Engage In Each Other

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
