Instrument Cluster -KX2-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

For better illustration the steering wheel is not shown. It is not necessary to remove the steering wheel in order to remove the Instrument Cluster -KX2-.

-- Pull the steering wheel all the way out and then lower as far down as it will go.

-- Remove the instrument cluster frame. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING (CONVERTIBLE) .

-- Remove the bolts -2 and 3-.

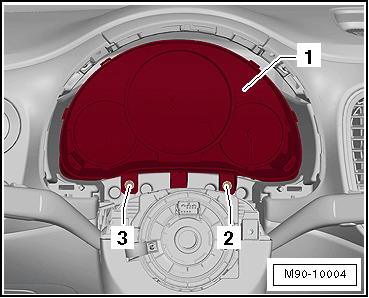

Fig 1: Identifying Instrument Cluster And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the instrument cluster -1- back out of the instrument panel while being careful of the connected wires.

-- Move the securing bracket -1- in the direction of the -arrow- and remove the connector -2-.

Fig 2: Identifying Clip -1- Secured In -Direction Of Arrow- And Disconnect Connector -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument cluster from the vehicle.
