Overview - Horn

WARNING: This page is about a different variant/trim than selected.

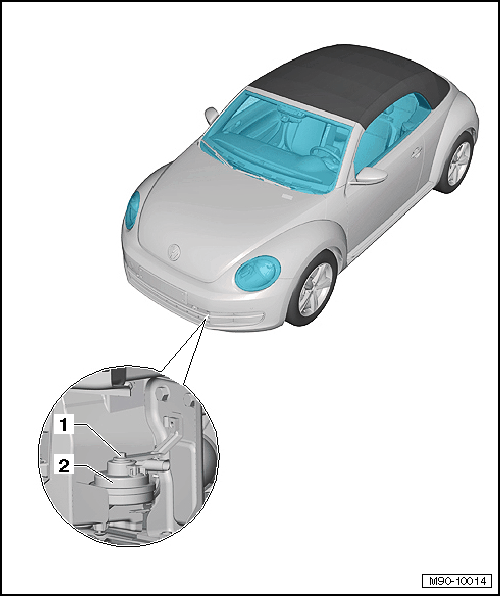

Fig 1: Identifying High Tone Horn, Low Tone Horn & Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- 10 Nm
- Tightening specification for the bracket bolt to longitudinal member: 20 Nm
High Tone Horn -H2- /Low Tone Horn -H7-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
