Overview - Accessories

WARNING: This page is about a different variant/trim than selected.

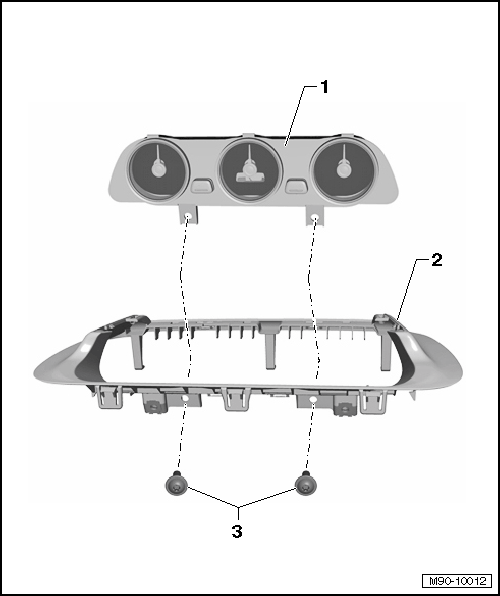

Fig 1: Identifying Auxiliary Instruments, Trim And Screws
GWWM90-10012Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Accessories
  2. Accessories Trim
    • Instrument panel bolts: 2 Nm
  3. Bolt
    • 2 Nm
    • Quantity: 2
