Accessories, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Information Electronics Control Module 1 -J794-. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING (CONVERTIBLE) .

-- Remove the bolts -arrows- and remove the accessories and the cover -1- upward from the instrument panel.

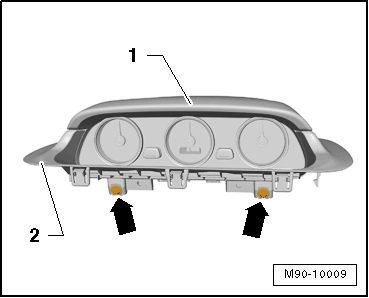

Fig 1: Identifying Bolts And Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector.

-- Remove the bolts -arrows- from the cover -2- and then remove the accessories -1- from the cover -2-.

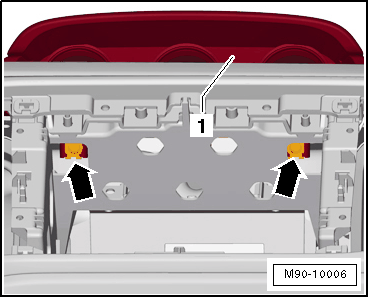

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
