Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

Vehicles with Subwoofer -R211- and Right Tail Lamp.

-- Remove the Subwoofer -R211-. Refer to OVERVIEW - SOUND SYSTEM .

All Vehicles

-- Remove the cover inside the side trim panel.

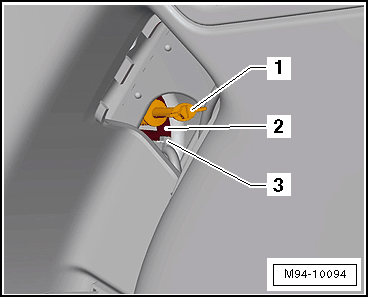

Fig 1: Identifying Tail Lamp Assembly With Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw -1- from the tail lamp -2- and then remove the tail lamp -2- outward.

-- Disconnect the connector -3-.
