Rear Fog Lamps, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Loosen the rear wheel housing liner only in the area of the rear bumper cover, do not remove completely. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

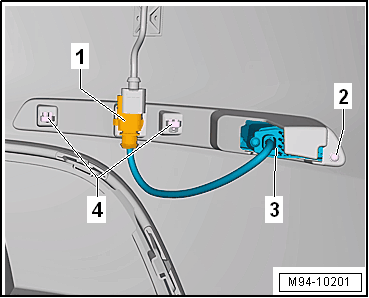

-- Unclip the connector -1- from the rear bumper cover.

-- Remove the bolt -2-.

-- Release the retainers -4-.

-- At the same time remove the rear fog lamp -3- toward the rear from the bumper cover.
