Back-Up Lamp Bulb, Removing And Installing, Tail Lamps With LEDS: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the Left Tail Lamp -MX3-. Refer to TAIL LAMP, REMOVING AND INSTALLING .

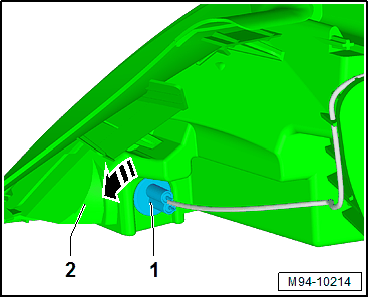

-- Release the bulb socket -1- by turning it in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb socket -1- together with the Left Back-Up Lamp Bulb -M16- from the left tail lamp -2-.

-- Remove the Left Back-Up Lamp Bulb -M16- -2- from the bulb socket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
