Steering Column Switch Module, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Position the steering wheel as far back as possible. Use the entire adjustment range of the steering column adjustment for this.

-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .

-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

WARNING:

Risk of destroying electronic components with static discharge.

Before disconnecting the connector, discharge static electricity from the body by touching a grounded vehicle component such as the door striker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector lock in the direction of the -arrow A- and press down.

-- Disconnect the connector -1-.

-- Remove the connector lock in the direction of the -arrow B- and press down.

-- Disconnect the connector -2-.

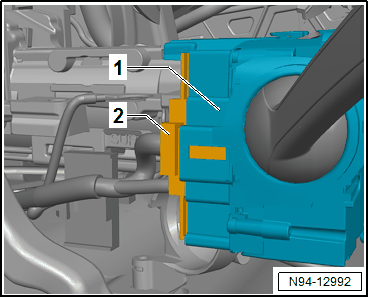

-- Release the left connector -2- from the steering column switch module -1- and disconnect.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

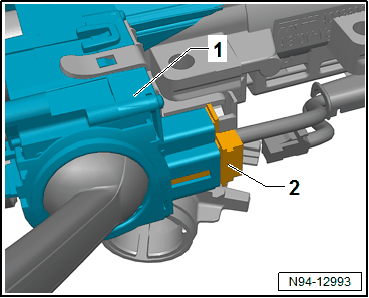

-- Release the right connector -2- from the steering column switch module -1- and disconnect.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

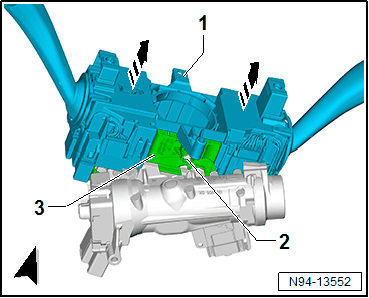

-- Remove the bolt -2- from the base carrier -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Do not twist the Airbag Spiral Spring/Return Spring with Slip Ring -F138- on the Steering Column Electronics Control Module -J527- out of its center position when removing it. The front wheels must be in the "straight-ahead position".

-- Remove the steering column switch module -1- in the direction of the -arrow- from the base carrier.
