Overview - Steering Column Switch Module With Mechanical Ignition Switch

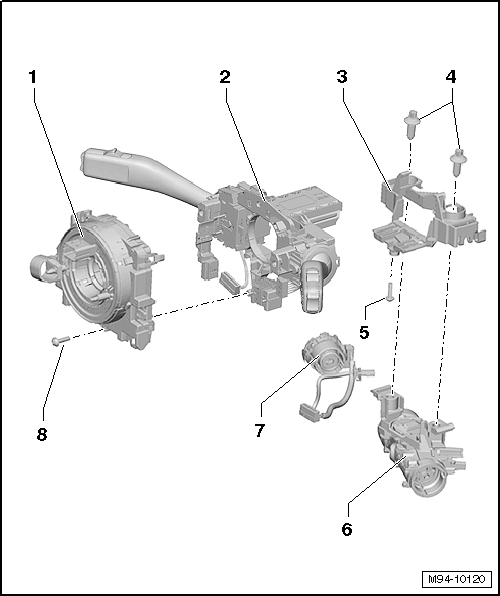

Fig 1: Exploded View Of Steering Column Switch Module (Kostal)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Steering Column Electronics Control Module -J527-
   • With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
   • Removing and Installing  . Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
2. Steering Column Combination Switch -E595-
   • With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22- and Cruise Control Switch -E45-
   • Removing and Installing  . Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
3. Base Carrier
   • For the steering column combination switch
   • Removing  and Installing  . Refer to STEERING COLUMN COMBINATION SWITCH BASE CARRIER, REMOVING AND INSTALLING, VEHICLE WITH MECHANICAL IGNITION LOCK .
4. Shear Bolts
   • Break-off torque: approximately 15 Nm
   • Quantity: 2
5. Bolt
   • 3 Nm
6. Steering Lock Housing
   • Using lock cylinder and Anti-Theft Immobilizer Reader Coil -D2-
   • Steering Lock Housing, Removing and Installing  . Refer to STEERING LOCK HOUSING, REMOVING AND INSTALLING .
   • Lock Cylinder, Removing and Installing  . Refer to LOCK CYLINDER, REMOVING AND INSTALLING
   • Anti-Theft Immobilizer Reader Coil -D2- Removing  and Installing  . Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING, VEHICLE WITH MECHANICAL IGNITION LOCK .
7. Ignition/Starter Switch -D-
   • Removing  and Installing  . Refer to IGNITION/STARTER SWITCH, REMOVING AND INSTALLING .
8. Bolt
   • 2 Nm
   • Quantity: 3
