Overview - Steering Column Switch Module And Electronic Ignition Switch

WARNING: This page is about a different variant/trim than selected.

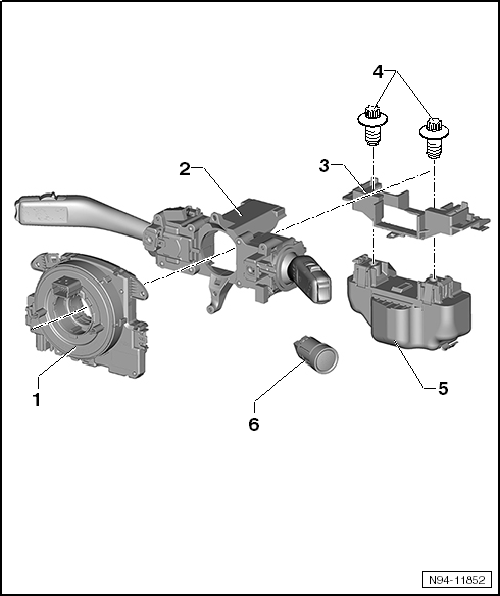

Fig 1: Exploded View Of Steering Column Switch Module with Access/Start System Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Steering Column Electronics Control Module -J527-
- Bolts: 2 Nm
- Removing and Installing . Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
- Bolts: quantity 3
Steering Column Combination Switch -E595-
- With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22- and Cruise Control Switch -E45-
- Removing and Installing . Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
Base Carrier
- For the steering column combination switch
- Removing and Installing . Refer to STEERING COLUMN COMBINATION SWITCH BASE CARRIER, REMOVING AND INSTALLING, VEHICLES WITH ELECTRONIC IGNITION LOCK .
Shear Bolts
- Break-off torque: approximately 15 Nm
- Quantity: 2
Electronic Steering Column Lock Control Module -J764-
- Removing and Installing . Refer to STEERING COLUMN, REMOVING AND INSTALLING
Start System Button -E378-
- Inside the center console storage compartment
- Removing and Installing . Refer to Start System Button -E378-, REMOVING AND INSTALLING .
