Parking Aid Control Module -J446-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the expanding rivets -2- on the Parking Aid Control Module -J446- -1-.

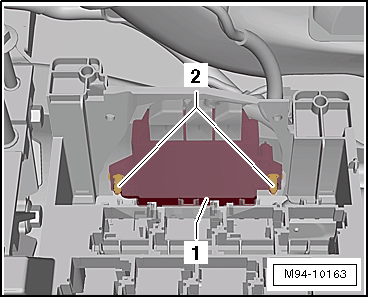

Fig 1: Identifying Expanding Rivets And Parking Aid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Parking Aid Control Module -J446- -1- from the bracket.

-- Release and disconnect the connectors.
