Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Loosen the expanding rivets -arrows-.

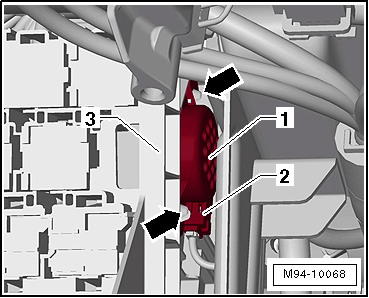

Fig 1: Identifying Front Parking Aid Warning Buzzer, Connector & Expanding Rivets

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -2- and remove the Front Parking Aid Warning Buzzer -H22- -1- from the bracket -3-.
