High-Mounted Brake Lamp, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOCK TRIM PANEL, REMOVING AND INSTALLING .

-- Warm the High-Mounted Brake Lamp Bulb -M25- all around the edge area using the : VAG1416 to loosen the two-sided adhesive seal.

-- Press the tabs -arrows- with the screwdriver and remove the High-Mounted Brake Lamp Bulb -M25- -1- outward.

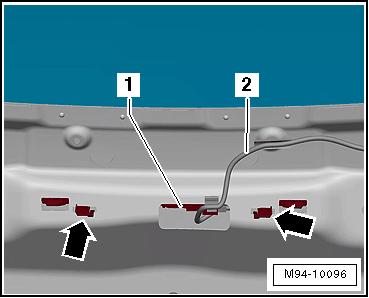

Fig 1: Identifying High-Mounted Brake Lamp Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time carefully pry up the High-Mounted Brake Lamp Bulb -M25- with the :T10039/1 from the rear lid.

-- Release and disconnect the connector -2-.
