Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamp: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

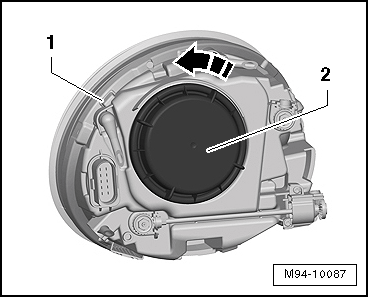

-- Turn the housing cover -2- on the headlamp -1- in the direction of the -arrow- and remove it.

Fig 1: Identifying Cap And Headlamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

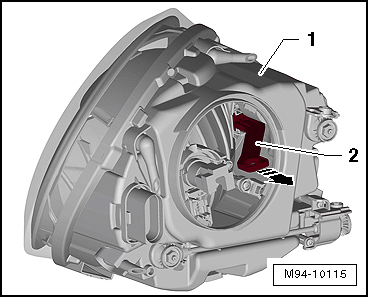

-- Remove the socket -2- from the reflector in direction of -arrow- together with the Left Position Lamp Bulb -M1-.

Fig 2: Identifying Bulb Socket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

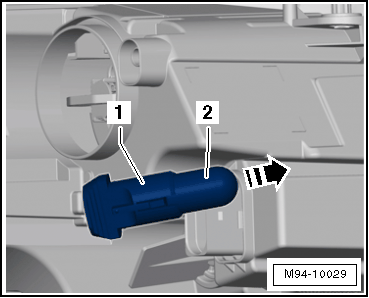

-- Pull the Left Position Lamp Bulb -M1- -2- in the direction of the -arrow- straight out of the bulb socket -1-.

Fig 3: Parking Lamp Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
