Left And Right Hid Headlamp Control Module -J343- / -J344-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the screws -arrows- from the Left Hid Headlamp Control Module -J343- -2-.

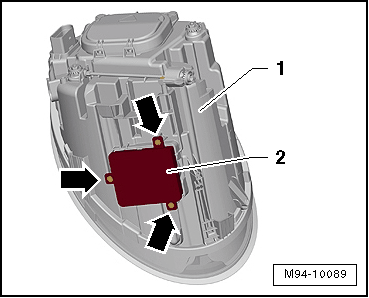

Fig 1: Identifying Left HID Headlamp Control Module With Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left HID Headlamp Control Module -J343- -2- from the headlamp -1-.

-- Remove the connection for the Left Hid Headlamp Control Module -J343-.
