Front Turn Signals, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Unclip the cover from the front bumper cover. Refer to Front Bumper .

-- Remove the bolt -2-.

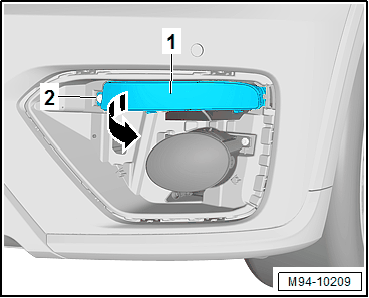

GWWM94-10209Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the turn signal -1- out of the front bumper cover in the direction of the -arrow-. Pay attention to the different wire lengths still connected.

-- Release and disconnect the connector on the turn signal -1-.

-- Remove the turn signal -1-.
