Front Turn Signal, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front turn signals. Refer to FRONT TURN SIGNALS, REMOVING AND INSTALLING .

-- Turn bulb socket and bulb -1- all the way in the direction of the -arrow-. Remove it towards the rear and out from the housing.

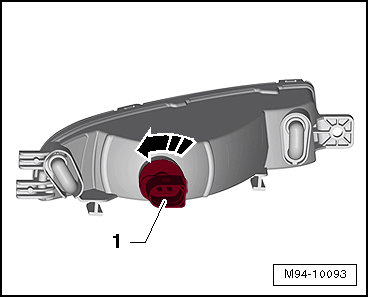

Fig 1: Identifying Bulb Socket
GWWM94-10093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the turn signal bulb into the bulb socket, turn it to the left and remove it from the bulb socket.
