Fog Lamp, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Unclip the cover from the front bumper cover. Refer to Front Bumper .

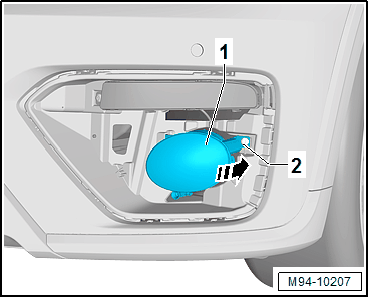

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the fog lamp -1- out of the front bumper cover in the direction of the -arrow-. Pay attention to the different wire lengths still connected.

-- Release and disconnect the connector on the fog lamp -1-.

-- Remove the fog lamp.
