Overview - Blind Spot Detection

WARNING: This page is about a different variant/trim than selected.

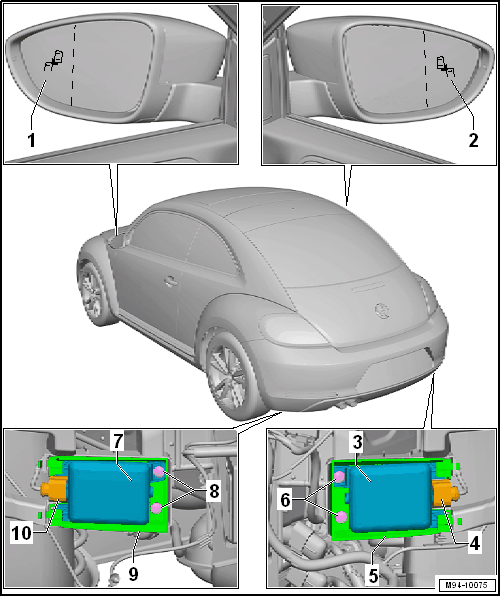

Fig 1: Identifying Blind Spot Detection Components Overview
GWWM94-10075Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
  2. Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
  3. Blind Spot Detection Control Module -J1086-
  4. Connector
  5. Bracket
  6. Bolt
    • 2 Nm
    • Quantity: 2
  7. Blind Spot Detection Control Module 2 -J1087-
  8. Bolt
    • 2 Nm
    • Quantity: 2
  9. Bracket
  10. Connector
