Preparing For Calibration
WARNING: This page is about a different variant/trim than selected.
Conditions

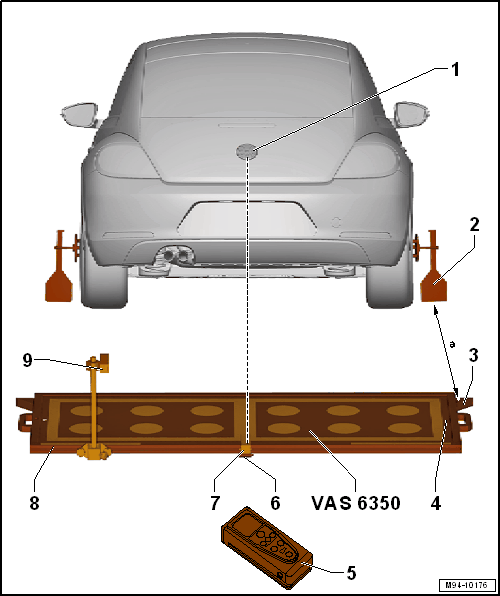

The blind spot detection must be calibrated for the following conditions:
- Corresponding DTC stored in the DTC memory for the Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-. Use the Vehicle Diagnostic Tester.
- Volkswagen Logo
- The Calibration Laser -VAS6350/3A- is aligned to the center of the Volkswagen logo.
- Calibration Tool - Wheel Center Mountings -VAS6350/1-
- With wheel bolt adapter SW 17 and measuring paddle
- Catch Bracket
- Calibration Tool - Spacing Laser: VAS6350/2 mount for the distance measurement.
- Distance to the Calibration Tool - Wheel Center Mountings -VAS6350/1- on the rear wheels: dimension -a- = 1700 ± 2 mm
- Level
- On the calibration board
- For checking the horizontal position
- Calibration Tool - Spacing Laser: VAS6350/2
- For distance measurement
- Usage information. Refer to the Operating Instructions.
- Plastic Foot
- Three on underside of the calibration board
- Adjustable for aligning horizontal position of the calibration board
- Calibration Tool - Linear Laser -VAS6350/3-
- With "laser protective eyewear"
- On the calibration board
- Turning on and off. Refer to the Operating Instructions.
- Measuring Scale
- For positioning the Calibration Tool - Lane Change Calibration Tool: VAS6350/4
- Dimension to be adjusted measuring point on steel ruler = 705 mm
- Calibration Tool - Lane Change Calibration Tool: VAS6350/4
for Lane Change Assistance
- Is moved from the left to the right side of measuring field during calibration
- When installed correctly, the vehicle electrical system voltage line must be connected at lower left of the calibration device (as seen in direction of travel)
- Height of the upper edge of the calibration device to the floor: approximately 632 mm
