Blind Spot Detection Control Module/Module 2 -J1086- / -J1087-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -4-.

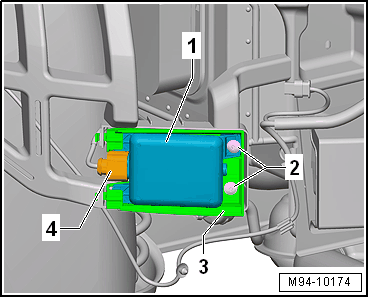

Fig 1: Identifying Blind Spot Detection Control Module With Connector, Bracket And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper bolt -2-.

-- Remove the Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087- from the bracket -3-.

Remove the Bracket:

-- Remove the lower bolt -2-.

Fig 2: Identifying Blind Spot Detection Control Module With Connector, Bracket And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -3-.
