Overview - Rear Side Window, Sedan

WARNING: This page is about a different variant/trim than selected.

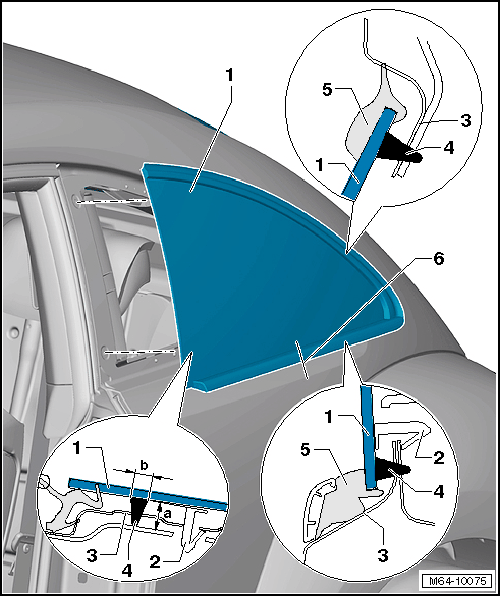

Fig 1: Identifying Side Window Components Overview (Sedan)
GWWM64-10075Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Side Window
  2. Clip
    • Are components of the side window
    • Quantity: 3
  3. Body Flange
  4. PUR Adhesive Sealant
    • Bead diameter: Width -b- = 6.5 mm, Height -a- = 10 mm (including the precoating, residual material on the window and the window flange)
    • Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
  5. Seal
    • Component part of side window.
  6. Adhesive Bead End
    • Apply the adhesive bead in this area
