Overview - Rear Side Window, Convertible

WARNING: This page is about a different variant/trim than selected.

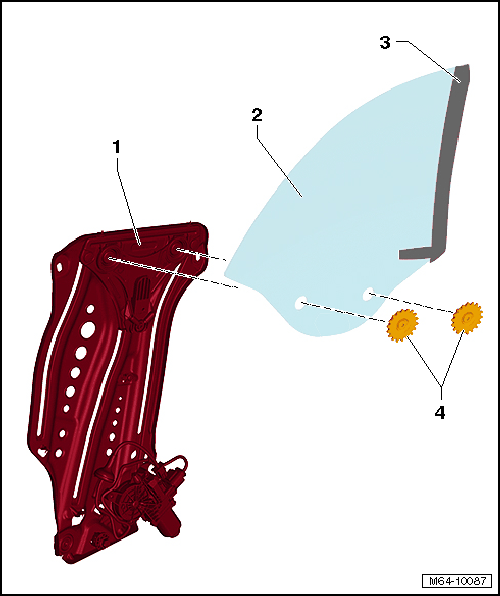

Fig 1: Identifying Side Window Components Overview (Convertible)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING, CONVERTIBLE .
Seal
- Cannot be replaced separately
Bolt
- 9 Nm
- Quantity: 2
