Overview - Rear Window

WARNING: This page is about a different variant/trim than selected.

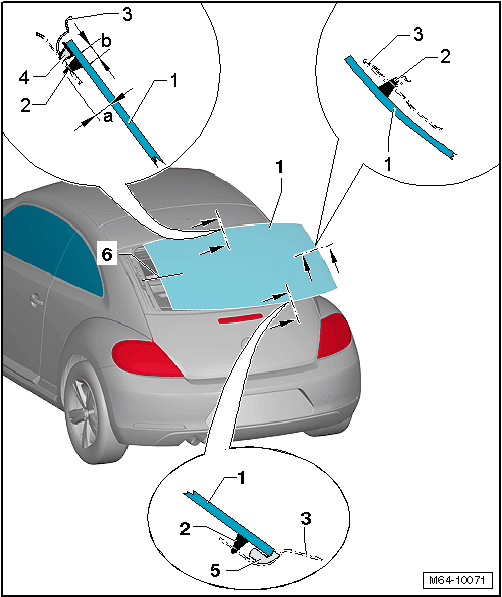

Fig 1: Identifying Rear Window Components Overview
GWWM64-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Window
  2. PUR Adhesive Sealant
    • Bead diameter: -Width b- = 6.5 mm -Height a- Height = 10 mm (including the precoating, residual material on the window and the window flange)
    • Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
  3. Body Flange
  4. Spacer
  5. Seal
    • Is a component of the rear window
  6. Adhesive Bead End
    • Apply the adhesive bead in this area
