Striker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

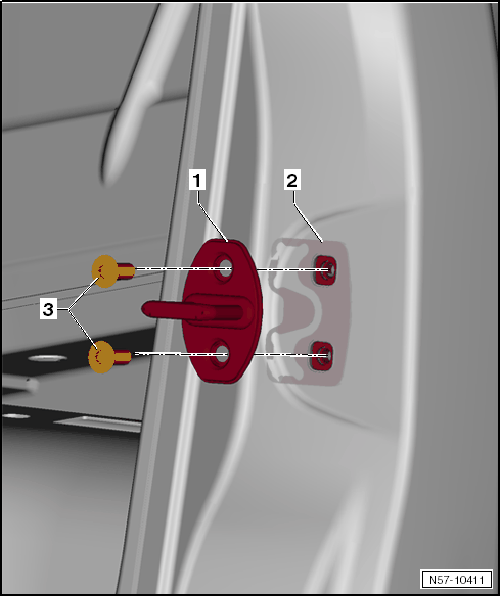

Fig 1: Identifying Striker Pin With Bolts
GWWN57-10411Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3- and the catch -1-.
