Outer Window Shaft Strip, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

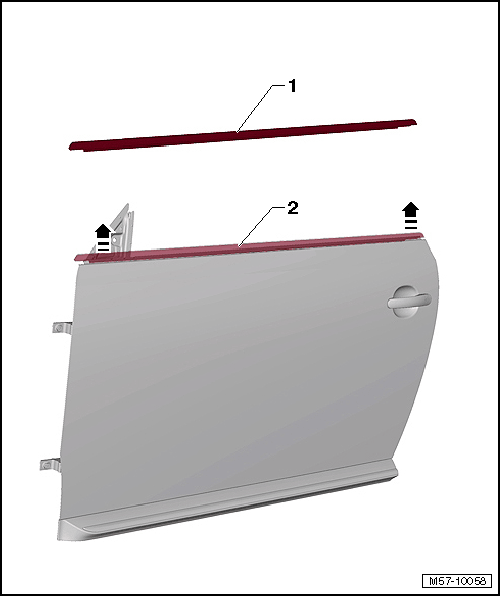

Fig 1: Identifying Seal And Door Flange

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the door window all the way.

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the seal -1- evenly from the door flange -2- in direction of -arrows-.
