Outer Window Shaft Strip, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

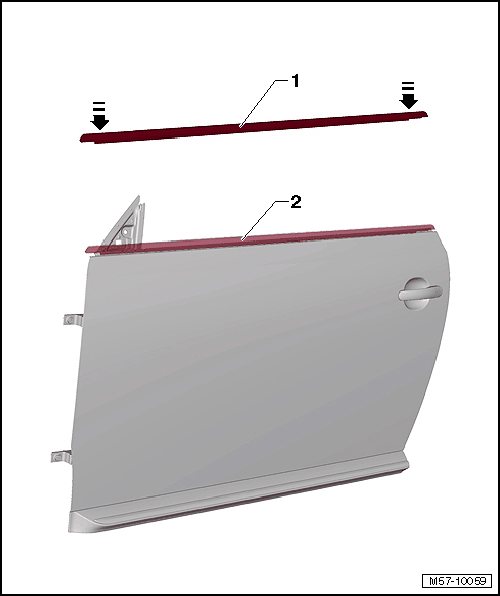

Fig 1: Identifying Seal And Door Flange
GWWM57-10059Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the seal -1- on the B-pillar and push it evenly by hand onto the door flange -2- -arrows-.

-- Install exterior mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .
