Outer Cover, Removing And Installing: Removing

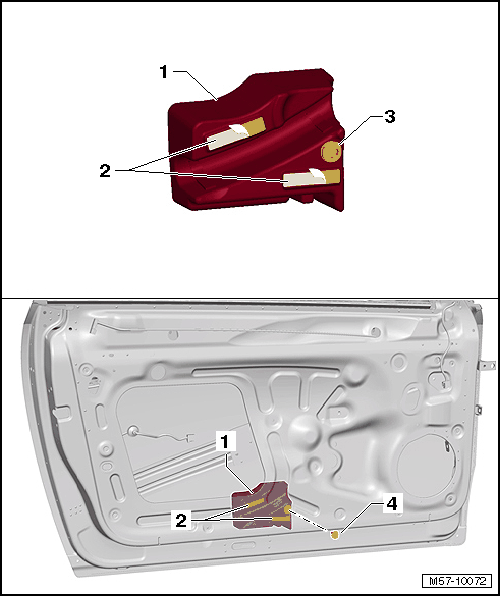

Fig 1: Identifying Outer Cover And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Remove the bolt -4-.

-- Loosen the outer cover -1- where it is glued -2- and remove it from the door.
