Lock Cylinder, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

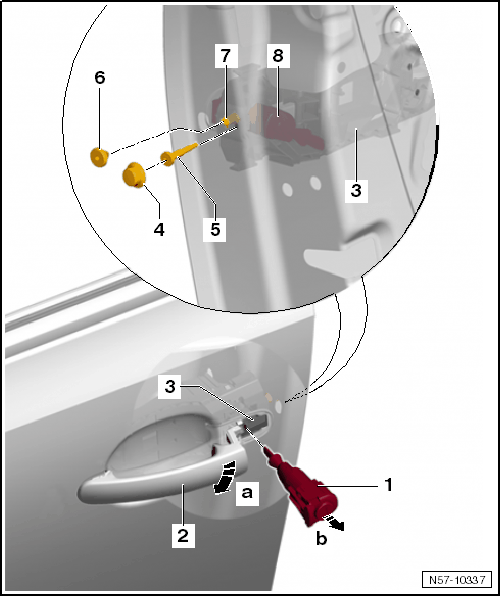

Fig 1: Identifying Lock Cylinder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the covers -4 and 6-.

-- Remove the bolt -5-.

-- Remove the bolt -7- all the way to release the lock cylinder.

-- Remove the door handle -2- from the door -8- in direction of -arrow a-.

-- Remove the lock cylinder housing -1- from the mounting bracket -3- at a right angle in direction of -arrow b- to the door.
