Component Location Overview - Central Locking, Sedan
WARNING: This page is about a different variant/trim than selected.

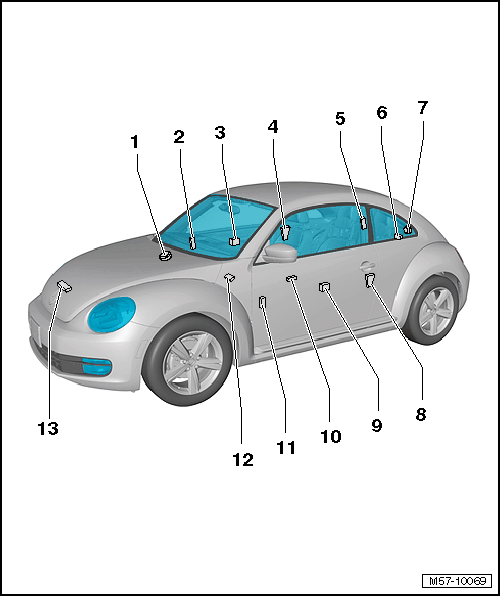

- Alarm Horn -H12-
- Component location: inside the plenum chamber
- Removing and installing. Refer to ALARM HORN -H12-, REMOVING AND INSTALLING .
- Connector Station
- Installed location: Left A-pillar in the vehicle interior
- Remove the A-pillar lower trim to disconnect the connector. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Front Passenger Door Control Module -J387-
- Integrated inside the Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Front Passenger Door Central Locking System Motor -V57-
- Integrated in the door lock on the front passenger side
- Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to ADJUSTING ELEMENT, REMOVING AND INSTALLING .
- Rear Lid Opening Motor -V254-
- Integrated inside the rear lid lock
- Removing and Installing. Refer to REAR LID LOCK, REMOVING AND INSTALLING, SEDAN .
- Release Button In Rear Lid Handle -E234-
- Integrated in the mechanism
- Removing and Installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
- Driver Door Central Locking System Motor -V56-
- Integrated in the door lock on the driver side
- Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Integrated inside the Driver Window Regulator Motor -V147-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- Component location: inside the driver door trim panel
- Removing and Installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512-, REMOVING AND INSTALLING .
- Connector Station
- Installed location: Left A-pillar in the vehicle interior
- Remove the A-pillar lower trim to disconnect the connector. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component location: under the instrument panel on the driver side
- Removing and Installing. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
- Component location: on the latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
