Overview - Impact Member

WARNING: This page is about a different variant/trim than selected.

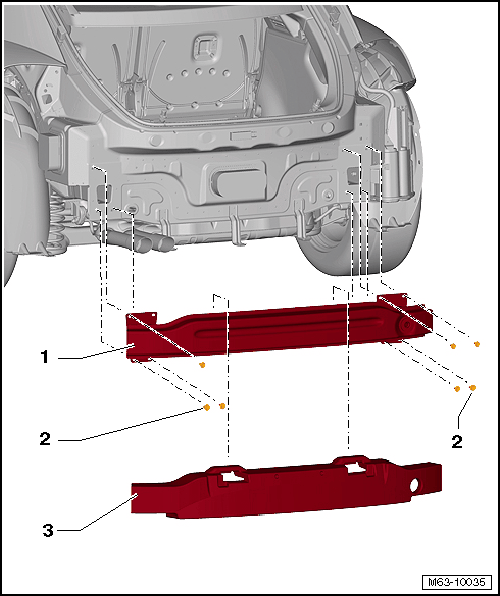

Fig 1: Identifying Rear Bumper Carrier Components Overview
GWWM63-10035Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Bumper Carrier
  2. Bolt
    • 20 Nm
    • Quantity: 3 on left and 4 on right
  3. Foam Piece
    • Self-adhesive
    • Not installed in all model versions
