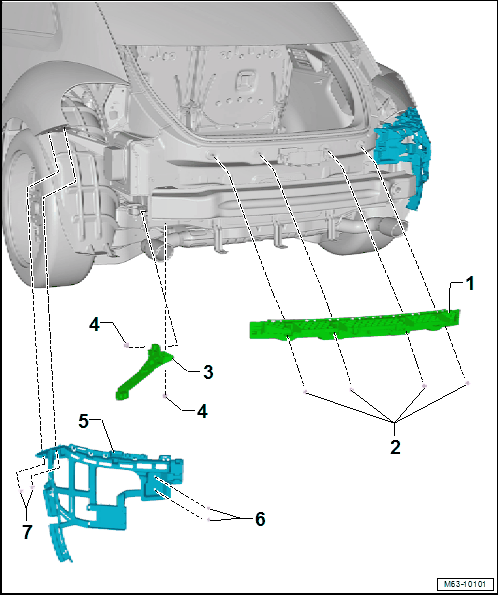

Overview - Guides And Brackets
WARNING: This page is about a different variant/trim than selected.
- Center Guide
- Nut
- Quantity: 4
- Center guide retainer -1-
- 3 Nm
- Additional Bracket
- Left and right
- Remove the exhaust system mounting in order to remove or install the right attachment. Refer to OVERVIEW - MUFFLER (CPLA, CPPA, CPKA, CPRA) or OVERVIEW - MUFFLER (DDSA, DDSB) .
- Nut
- Quantity: 2 on each side
- Fastener attachment -4-
- 3 Nm
- Side Guide
- Left and right
- Bolt
- Quantity of 1 or 2 per side depending on allocation.
- Securing the side guide -5-
- 3 Nm
- Nut
- Quantity: 2 on each side
- Securing the side guide -5-
- 3 Nm
